Oscar
Oscar is unique take on an oscillator, providing the very best of both semiconductor and thermionic worlds, namely - good pitch tracking and distinctive vacuum tube / transformer sound. Nothing you have heard before.
The oscillator in its sawtooth core is equipped with Thyratron tube (TG1-0,02/0,5) inherently capable of syncing up (resetting mode) and down (frequency division mode). Hardness of the sync can be controlled with the MOD AMT dial. Second tube (6F12P) is utilized in a novel waveshaper for Soft Pulse (Triangle-like) and Hard Pulse (square-wave like) waveforms - with the transformer feedback. Waveform shape and harmonic content is frequency dependent. This topology gives the user choice of 6 waveforms, in which 4 of them can be voltage-controlled.
Features

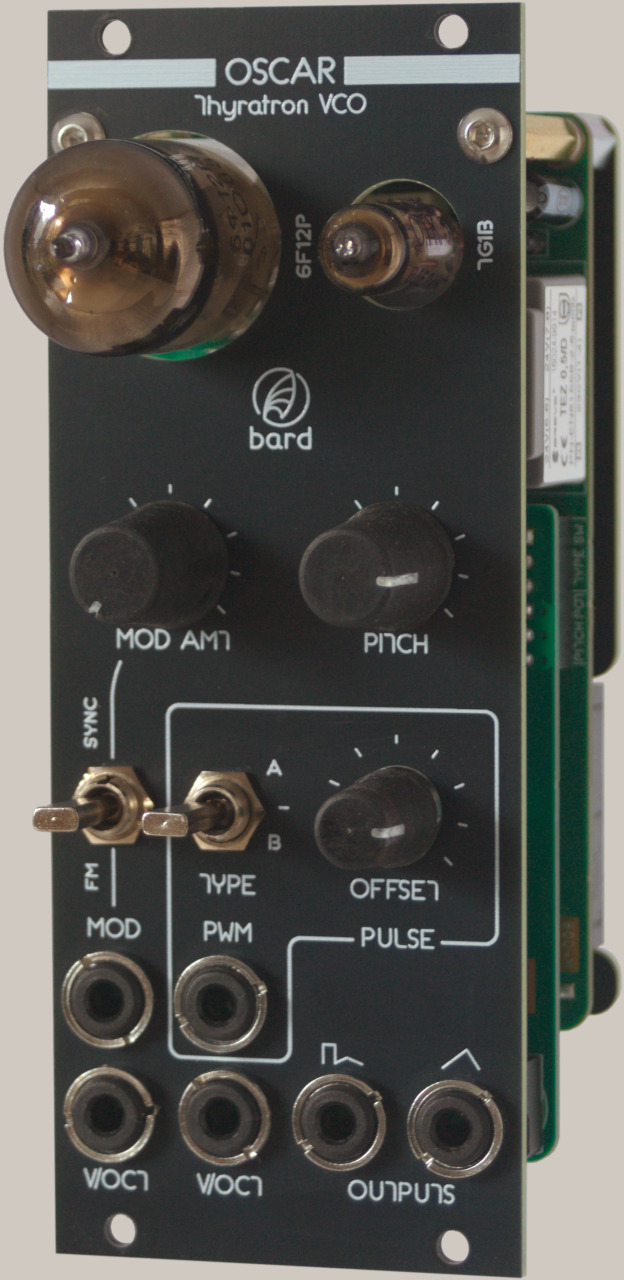

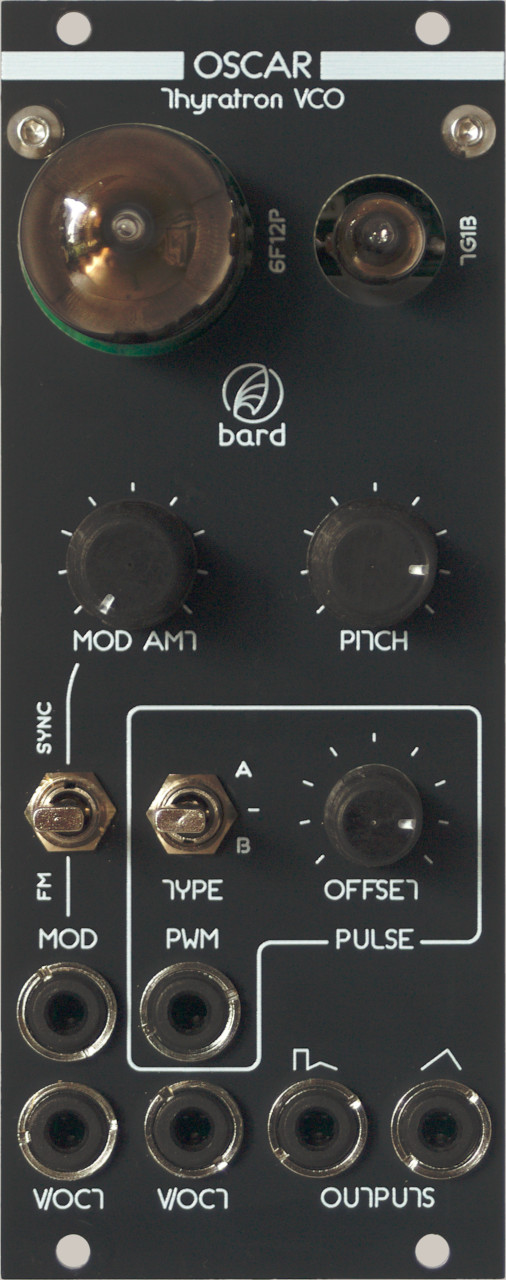

◯ Vacuum tube oscillator module utilizing 6F12P(6Ф12П) and TG1-0,02/0,5(ТГ1-0,02/0,5) tubes in high voltage operation
◯ Fine and coarse pitch tuning
◯ Voltage-controlled pulse shape
◯ Two V/oct inputs plus one FM Input
◯ Hard sync, soft sync, sync al dente (variable quantity)
◯ Two waveform outputs
◯ Transformer-based pulse shaper
◯ Pitch tracking: +-8 cents accuracy across 6 octaves
◯ Pitch range: 16Hz - 14kHz
info Please check the audio and video demos provided in the Resources link.
spec:
Current draw: -------+------- +12V | 22mA -12V | 22mA +5V | 450mA Physical: -------+------- Width | 10HP Depth | 42mm Weight | 280 g Prices: --------------- Module | 330EUR Spares | 9EUR
Ordering
Sorry, out of stock! This module will undergo a redesign Q3 2024.
