Vacuform

infoThis is an old revision. Click here to see the new revision page.

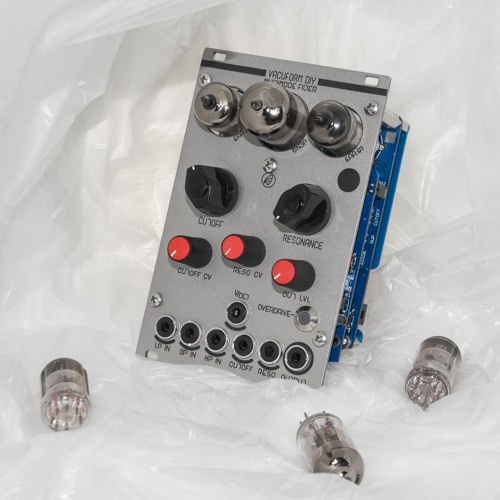

Vacuform is a 12 dB multimode filter utilizing vacuum tubes as active elements. It is intended to generate filtered sound with complex relations and control parameter interdependencies, adding more details to the sound compared to common transistorized designs.

Features

◯ Discrete, vacuum tube multimode filter

◯ Simultaneous lowpass, bandpass and highpass inputs

◯ Cutoff frequency manually controlled or via two CV inputs, from which one can be attenuated

◯ Resonance amount manually controlled or via attenuated CV input; Can be set to oscillation

◯ AC-Coupled Output with attenuation

◯ Widely varying degree of inherent soft saturation

◯ Resonant output waveform dependent on input signal anplitude

warning Vacuum tubes are thermionic devices; They require high temperatures in order to work, which correlates with high power consumption. Tubes that size usually need hundreds of milliamps each - that means your Eurorack system needs to provide LOTS of current - 890mA @ 5V in this case. Alternatively, an external power source can be used to offload your PSU. warning Also, please note that vacuum tube modules are generating significant heat that may alter performance of neighbouring temperature sensitive modules.

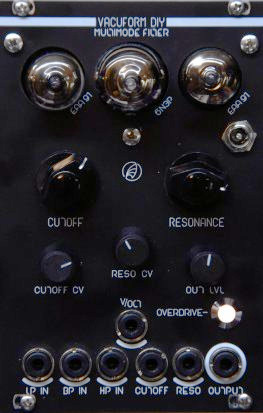

info Available in stainless steel gray or black FR4 matte

info Please check the audio and video demos provided in the Resources link.

Ordering

Module available!

Order directly via email:
Write to bardsynthesizers@gmail.com with your inquiry.
