VTG

'Vacuum Tube Gate' is a dual channel, non-resonant Lowpass gate with soft Tube saturation in a very compact format. It utilizes 6N3P(6Н3П) double triode in a high voltage amp circuit.

Features

◯ Two VC-lowpass gates with triode saturation

◯ Three modes of operation: lowpass filter, amplifier, side-chaining amplifier (XM)

◯ Cross-modulation/ side-chain option (XM)

◯ DC coupled inputs, AC coupled outputs

◯ Soft tube saturation, don't expect the 'overdrive' sound!

◯ Compact (6HP) and skiff (42mm deep)

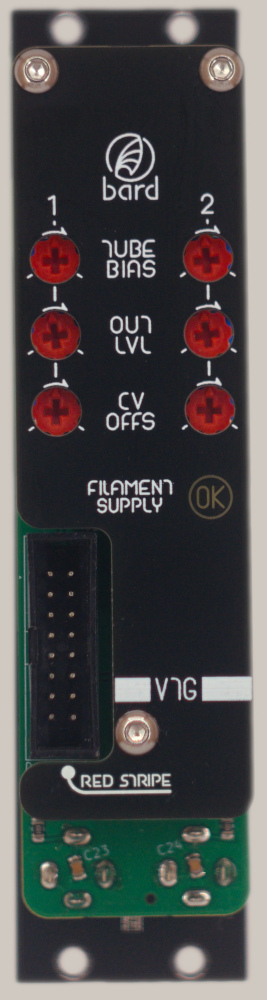

◯ Saturation shape trimmable on the back

Module uses single 6N3P (6Н3П) vacuum tube. Each channel can be fed back to the middle of another LPG using XM setting - in this case it's possible to create side-chaining effect as well as voltage-controlled cross-fade between two sound sources.

info Please check the audio and video demos provided in the Resources link.

Ordering

Module available!

Order at Soundofyou.eulink

Order directly via email:
Write to bardsynthesizers@gmail.com with your inquiry.
