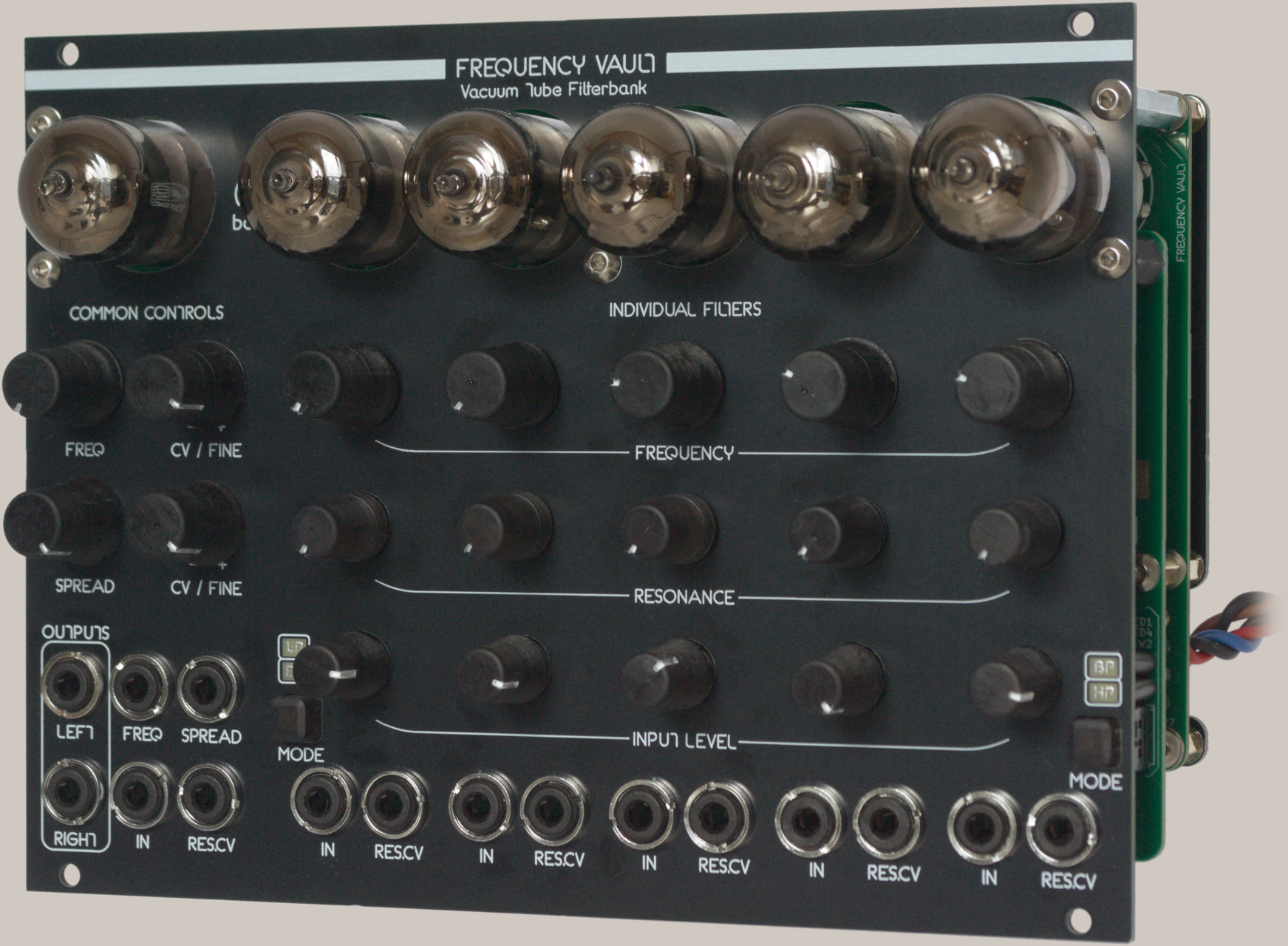

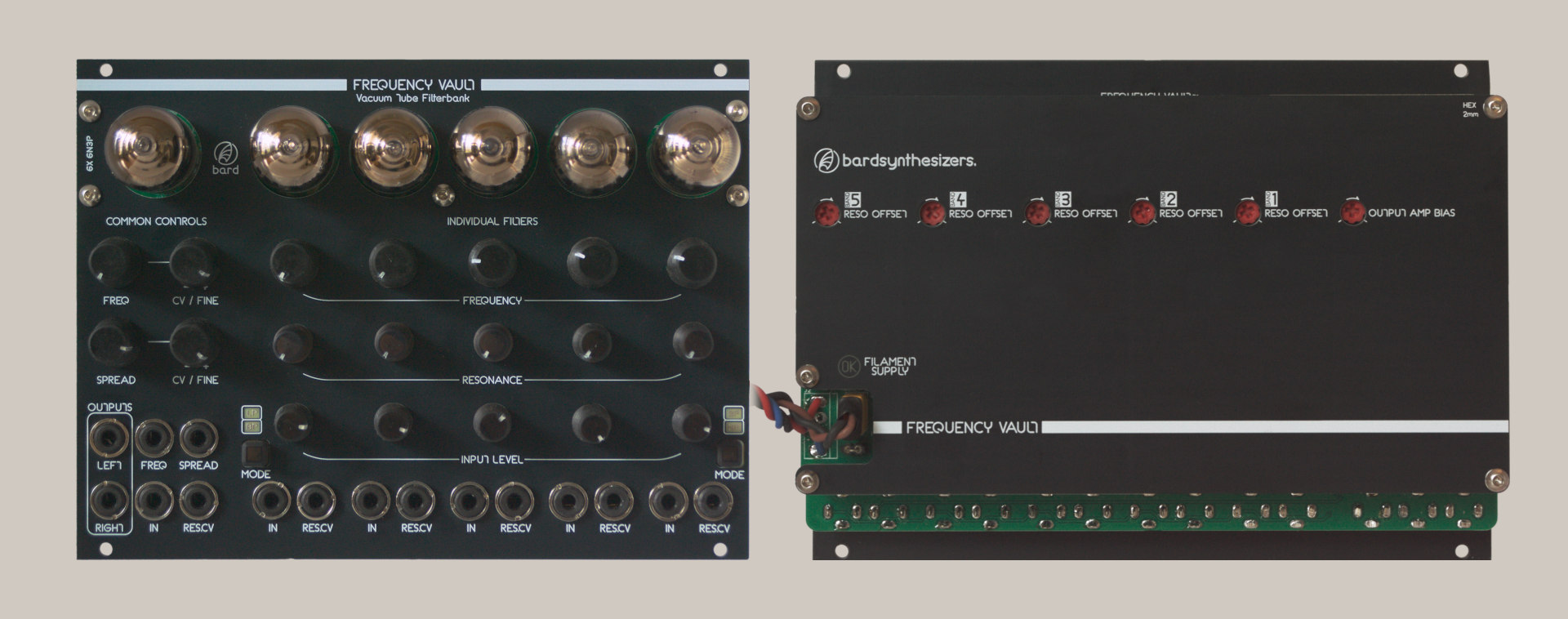

Frequency Vault

Frequency Vault is a drone powerhouse, resonant EQ, quirky drum machine, spectral mixer - all in one! Five pure-tube resonant filters with no less than 15 vactrols inside!

Features

◯ 5 separately adjustable vacuum tube filters

◯ Pure triode Sallen-Key type filters with soft saturation and resonance

◯ Selectable between LP/BP modes on band 1

◯ Selectable between BP/HP modes on band 5

◯ Common Voltage control over cutoff frequencies

◯ Voltage controlled Cutoff Spread parameter

◯ Common input and Separate inputs for each filter

◯ Common resonance control and separate resonance control for each filter (PING)

◯ 2 Vacuum tube mixers at the end of the chain

◯ Stereo output (hard-wired panning)

warning Vacuum tubes are thermionic devices; They require high temperatures in order to work, which correlates with high power consumption. Tubes that size usually need hundreds of milliamps each - that means your Eurorack system needs to provide LOTS of current. Alternatively, an external power source can be used to offload your PSU.
Frequency Vault can be hard-wired for 5V, 12V or external power supply on order, depending on your needs. warning Please note that vacuum tube modules are generating significant heat that may alter performance of neighbouring temperature sensitive modules.

info Available in black FR4 matte

info Please check the audio and video demos provided in the Resources link.

Current draw: -------+------- +12V | 68mA -12V | 28mA +5V | 1840mA Physical: -------+------- Width | 34HP Depth | 45mm Weight | 480 g Prices: --------------- Module | 720EUR Spares | 49EUR (incl. 23% VAT)

Ordering

Module available!

This module requires high power from your system. Power solution will be consulted upon ordering to ensure correct operation.

Order directly via email:
Write to bardsynthesizers@gmail.com with your inquiry.
