Mutes

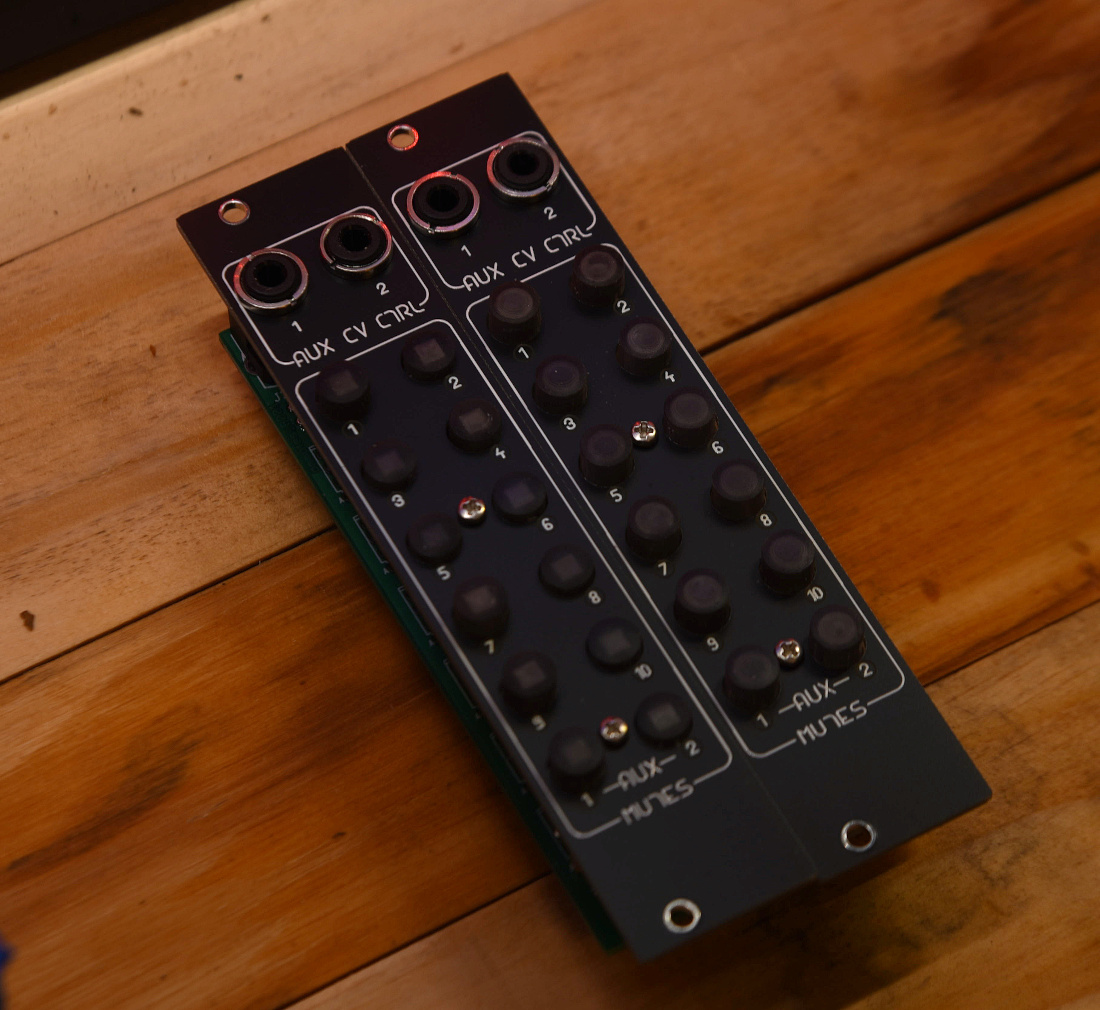

Mutes is an expander module for WMD Performance Mixer link.
The module was created due to suspension of the original expander production.
Features
◯ 10 soft mutes for channel inputs
◯ 2 soft mutes for Auxillary channel inputs
◯ 2 Auxilliary Control CV Inputs
◯ Toggle button action
◯ Illuminated on/off state indicators on the panel
◯ 5HP only!
Module is available as assembled package.
info As of now the DIY kits are sold out.

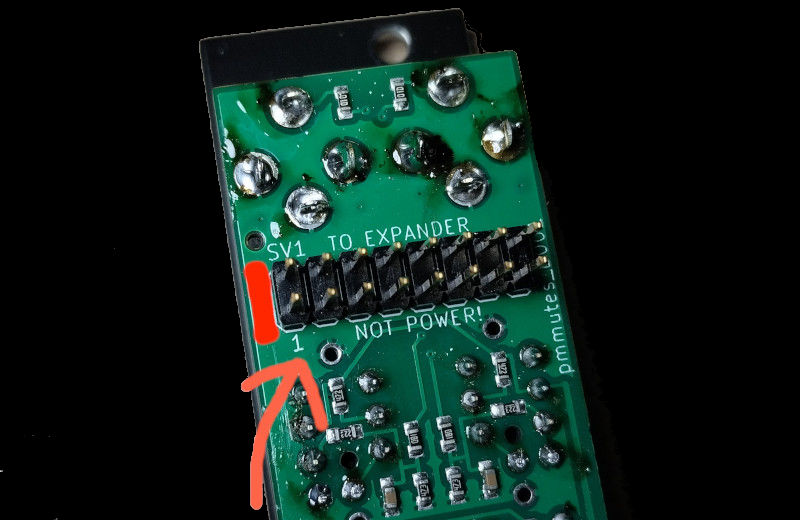

warning Note the orientation for the expander cable - red stripe:
spec:
Current draw: -------+------- +12V | 0mA -12V | 25mA +5V | 0mA Physical: -------+------- Width | 5HP Depth | 28mm Weight | 60 g Price (net): --------------- Module | 75EUR
Ordering
Module available!
Orders are accepted via email. Please provide me with the shipping address so I can calculate the final price.
For the EU residents: Vat rate is 23%.
For the US residents: Vat rate is 0%.
Shipment costs:
14EUR - EU
28USD - USA
email me to know the shipping costs to other locations!
